Sibros Network Protocol Stacks

Enable seamless, reliable communication across vehicle ECUs, simplifying diagnostics, updates, and control with platform-independent flexibility with the lowest memory footprint in the industry.

UDS Server

Implemented in C99 Sibros UDS Server stack is a robust solution for the ISO 14229 (UDS) protocol, typically integrated with the bootloader and/or application of an Electronic Control Unit (ECU).

Platform-Agnostic Design: Modular and OS-independent for use on diverse ECUs.

Customizable Services: Flexible implementation with configurable services to save flash space.

Transport Layer Options: Supports ISO-TP or DoIP.

User Specific Extensions: Enables message send/receive callbacks for tailored functionality.

UDS Client

The Sibros UDS Client is a flexible solution designed to meet user-specific requirements, with a customizable transport layer and a modular, platform-agnostic architecture.

Platform-Agnostic Design: Portable across devices, from PCs to memory-constrained embedded systems.

Customizable Transport Layer: Flexible implementation supporting ISO-TP or DoIP.

Developer Friendly API: Easy integration with detailed documentation for programmatic UDS service use.

User-Specific Extensions: Allows custom message handling via send and receive callbacks.

DoIP Server

Sibros' Diagnostic over IP (DoIP) server solution enables seamless communication between diagnostic tools and in-vehicle ECUs using IP protocols, compliant with ISO 13400-2:2010 and ISO 13400-2:2012.

Flexible Communication: UDP and TCP socket interface can be configured to any TCP/IP stack like lwIP.

Seamless UDS Integration: Easily integrates with a UDS server into applications or bootloaders over DoIP.

Gateway Functionality: UDS diagnostics for downstream devices via a single TCP/IP connection. (Not supported yet, in Roadmap).

pre-Integrated into Sibros UDS Bootloader: Out of the box integration with the Sibros UDS Bootloader.

Enhanced Diagnostic Reach: Simplifies vehicle diagnostics by bridging external tools and in-vehicle ECUs.

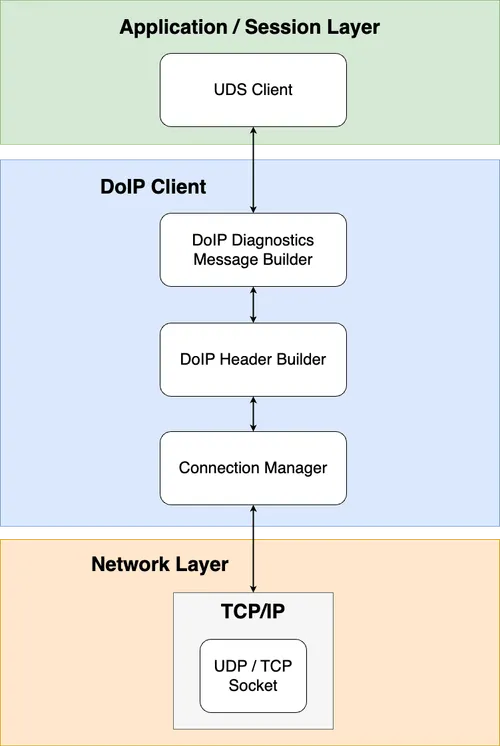

DoIP Client

Sibros' Diagnostic over IP (DoIP) client solution enables the ability to send DoIP requests compliant with ISO 13400-2:2010 (0x1), ISO 13400-2:2012, and , ISO 13400-2:2019.

Flexible Communication: UDP and TCP socket interface can be configured to any TCP/IP stack like lwIP.

Seamless UDS Integration: Easily integrates with a UDS client.

Pre-Integrated into Sibros UDS Client: Out of the box integration with the Sibros UDS Client.

Enhanced Diagnostic Reach: Simplifies vehicle diagnostics by bridging external tools and in-vehicle ECUs.

ISO-TP Overview

The Sibros ISO-TP module enables seamless communication between higher-level systems and CAN drivers, extending CAN's capability to handle payloads beyond 8 bytes, up to 4095 bytes per message.

Efficient Payload Handling: Automatically segments and manages large payloads per ISO 15765-2.

Flexible Modes: Supports both blocking and non-blocking operation for diverse use cases.

Easy Integration: API for integration into any C-based or C++ CAN system.

Versatile Compatibility: Works with any C or C++ CAN driver for seamless connectivity.

State Machine Management: Built-in state machine handles event sequencing per ISO-TP standards.
